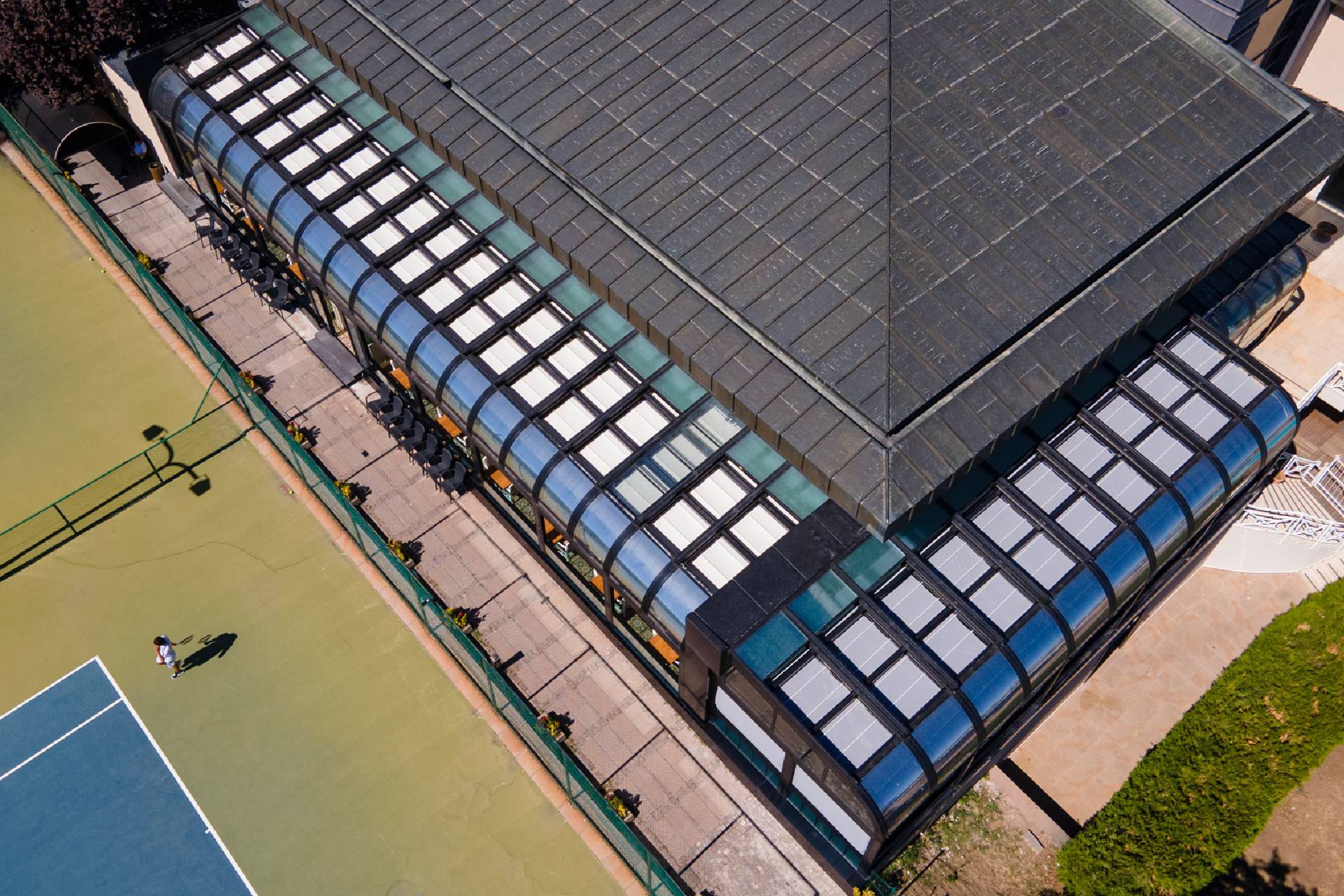

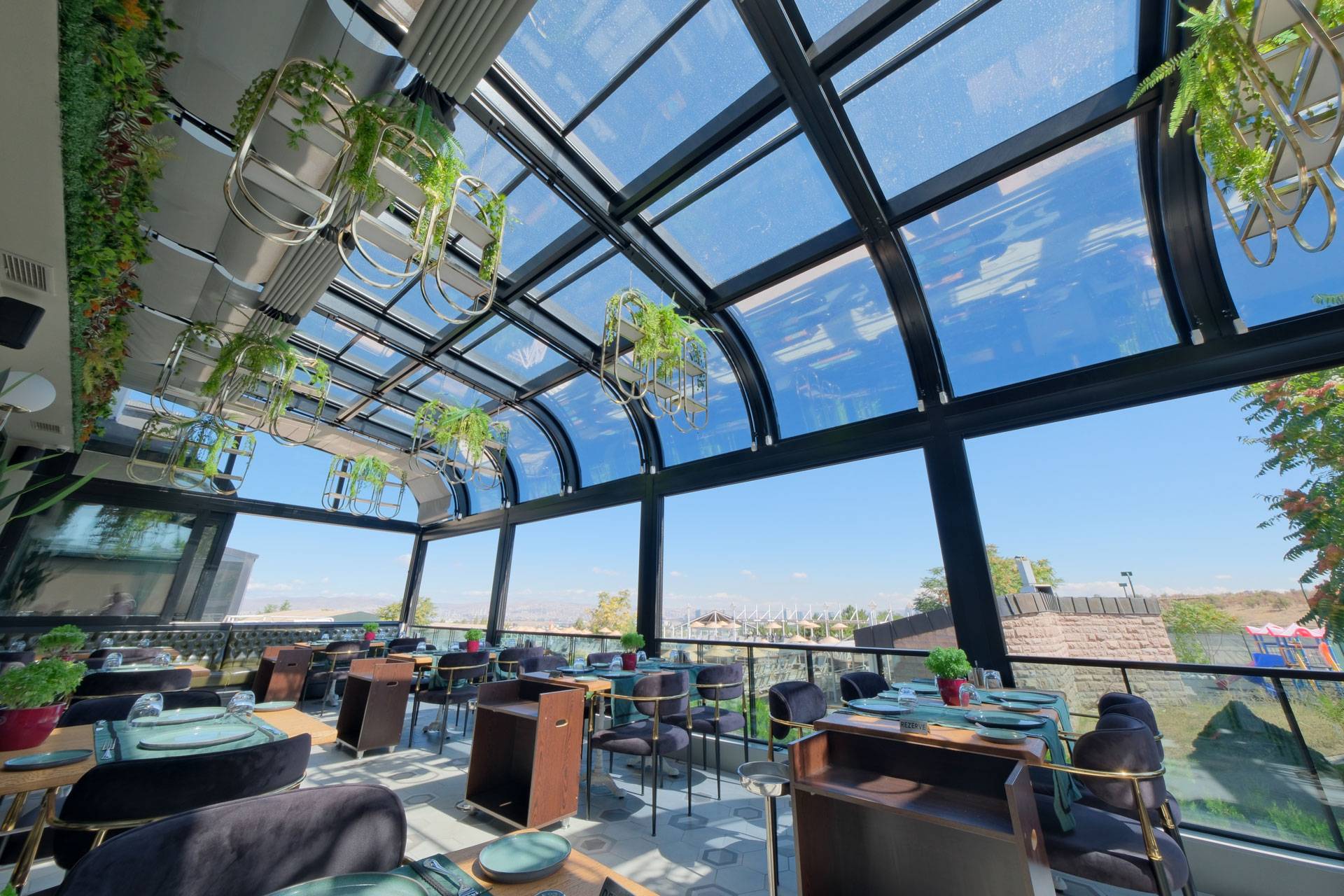

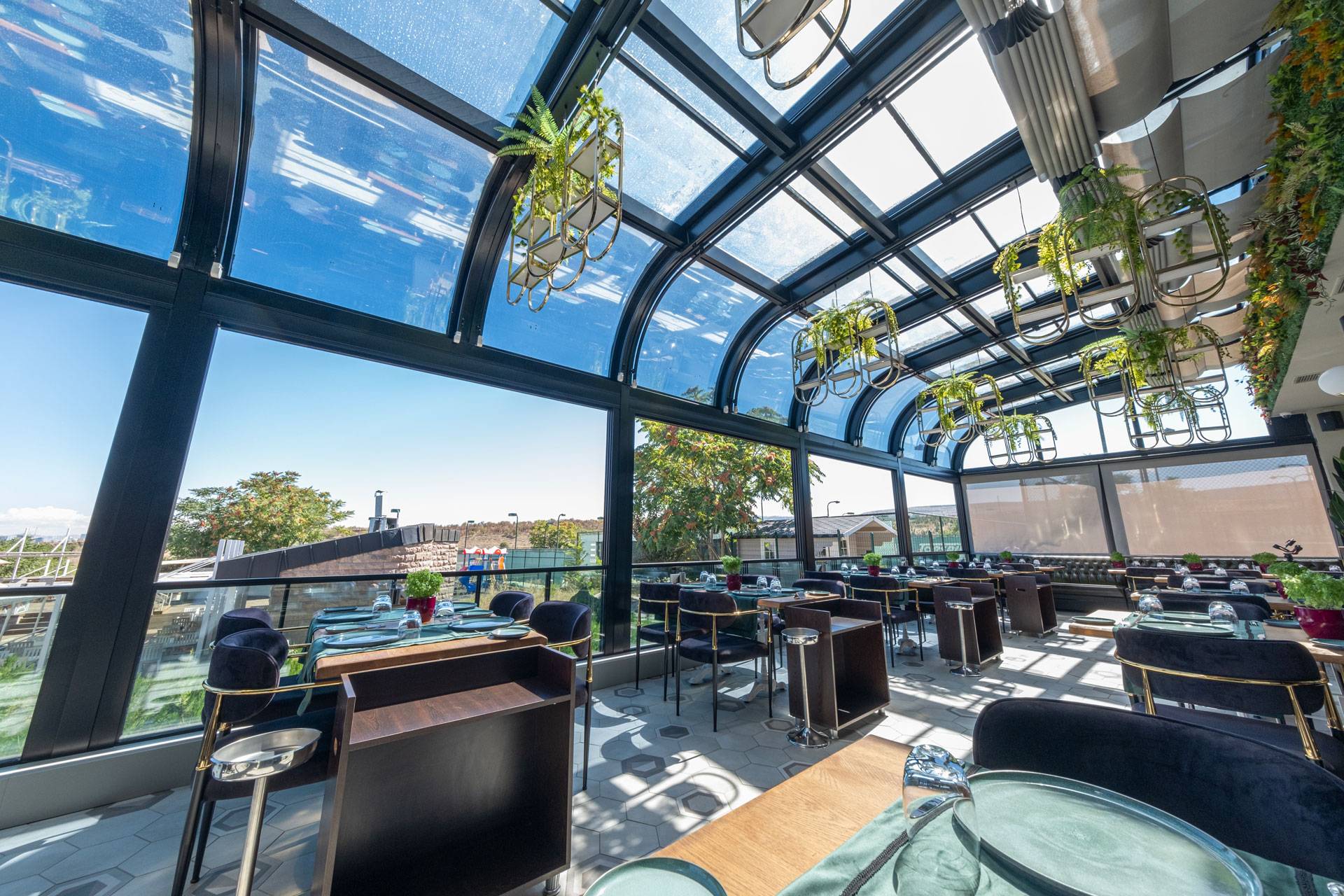

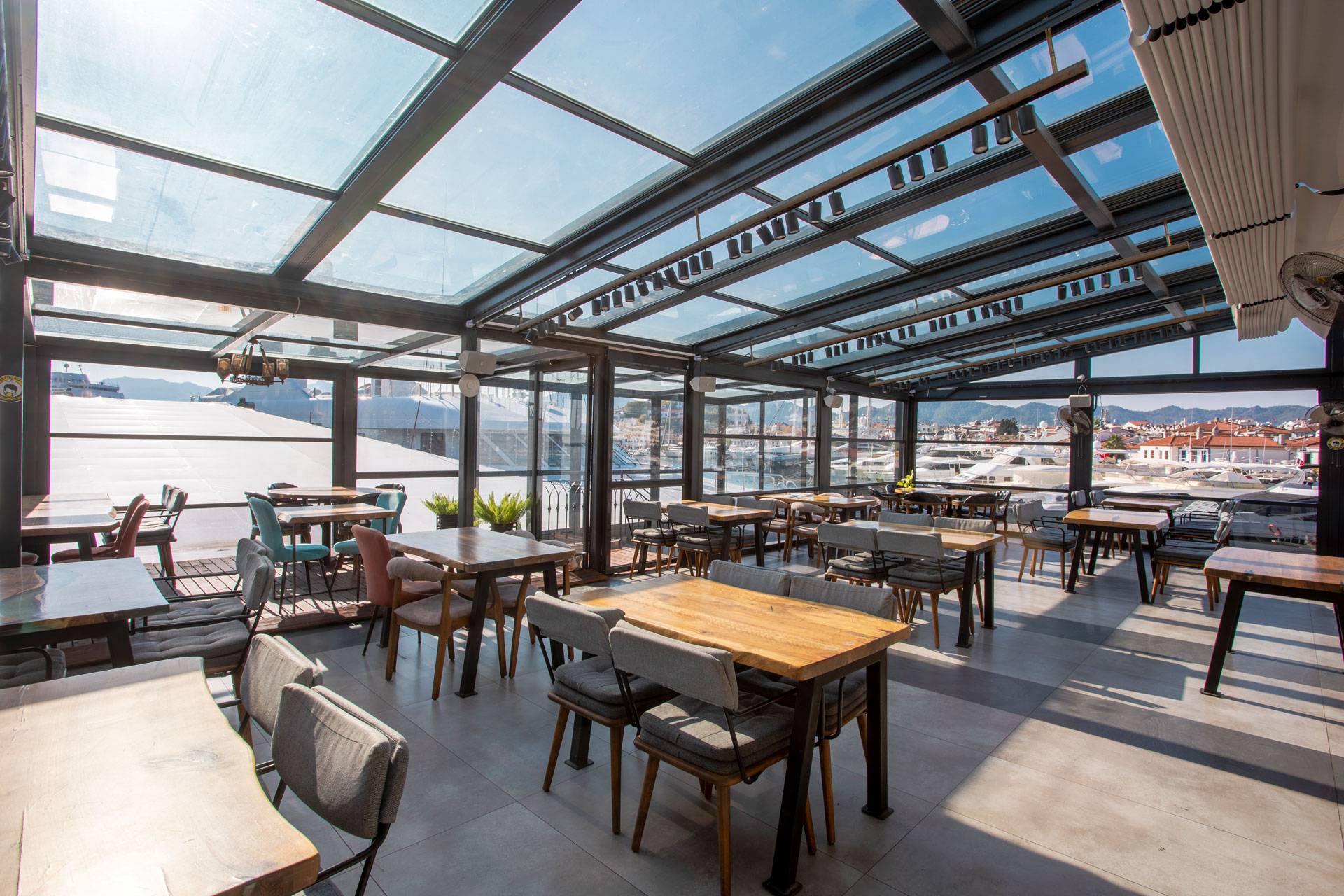

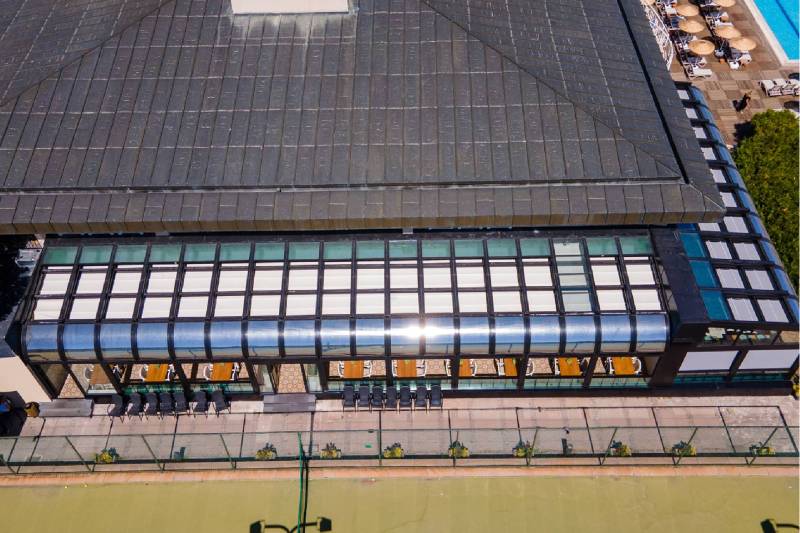

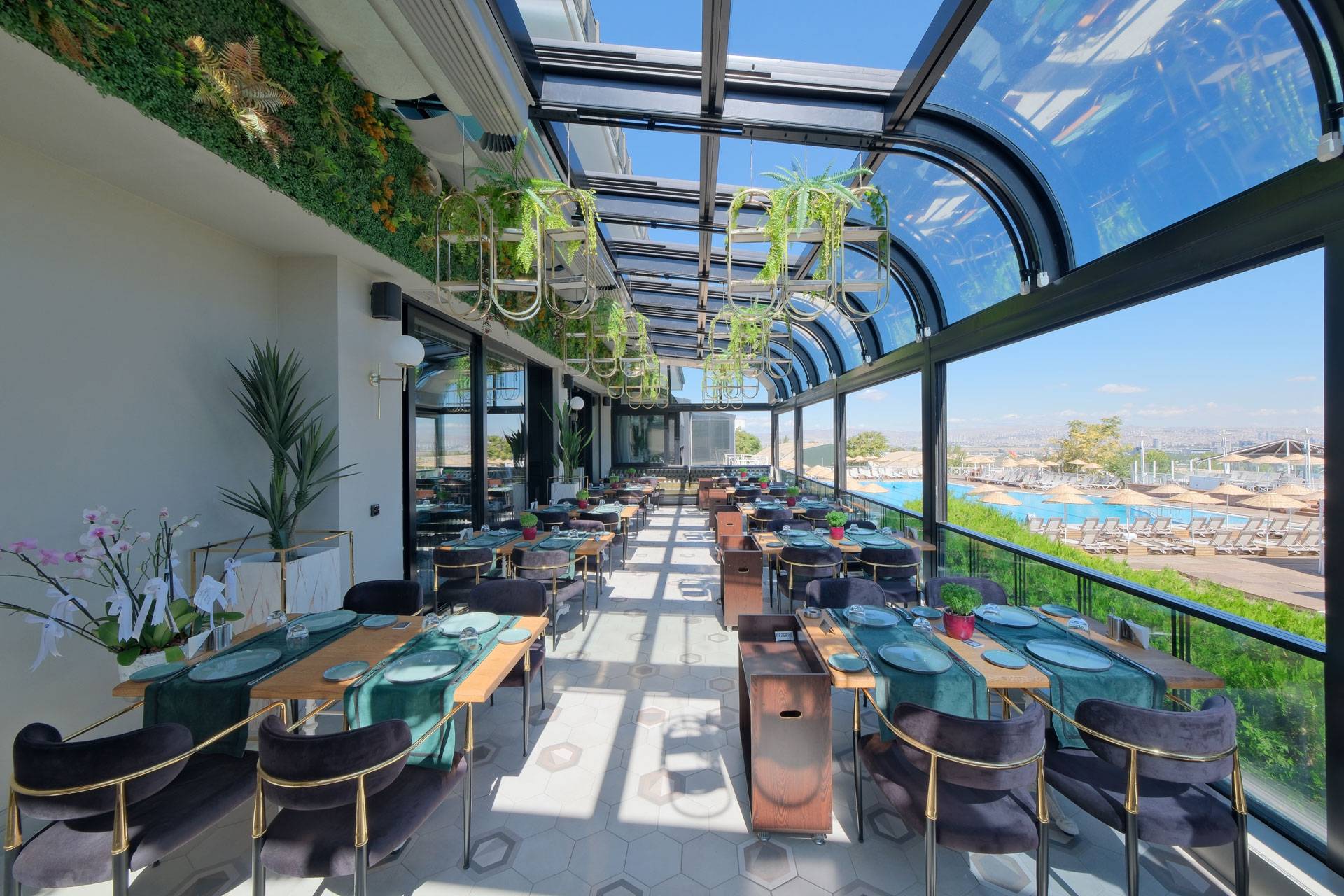

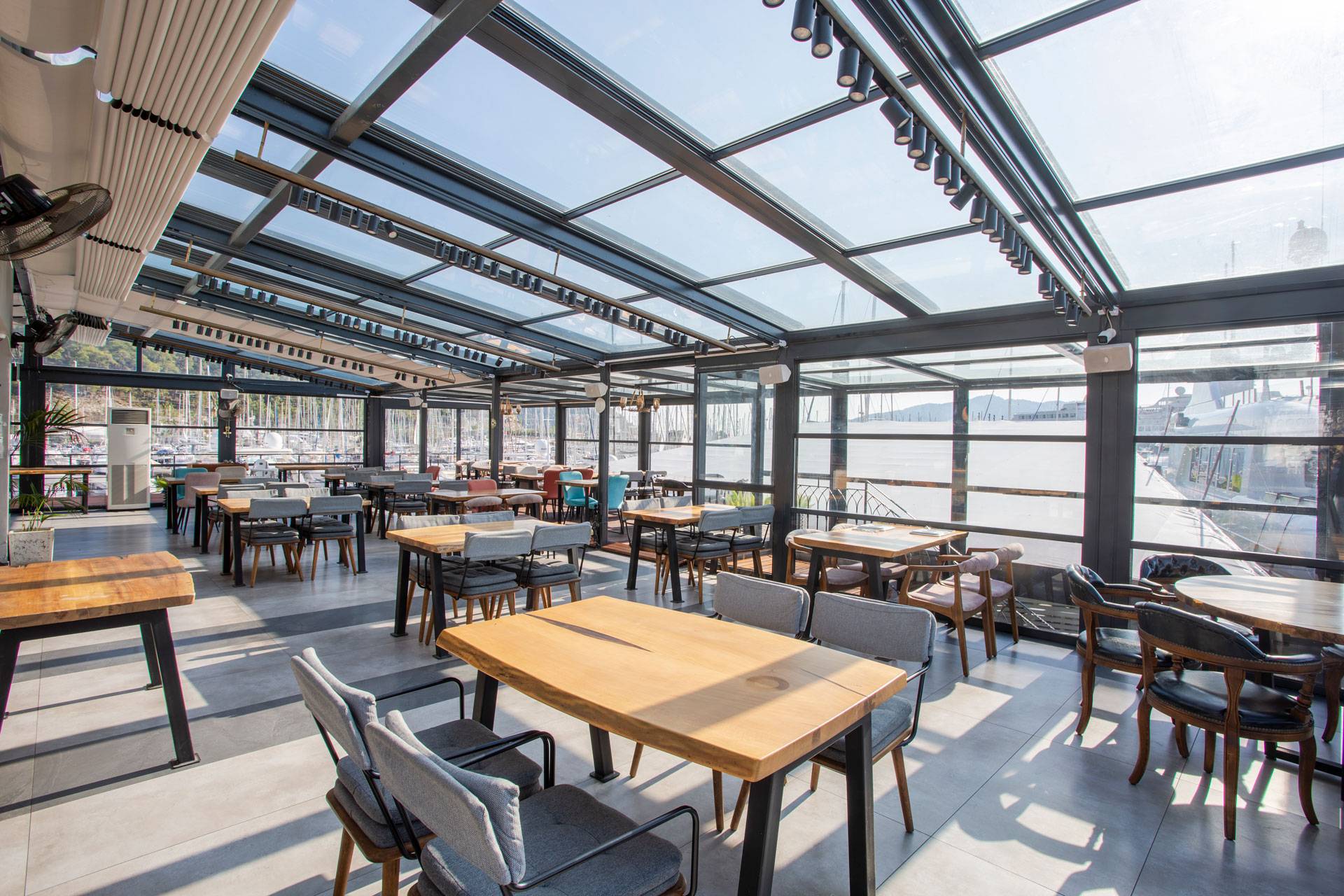

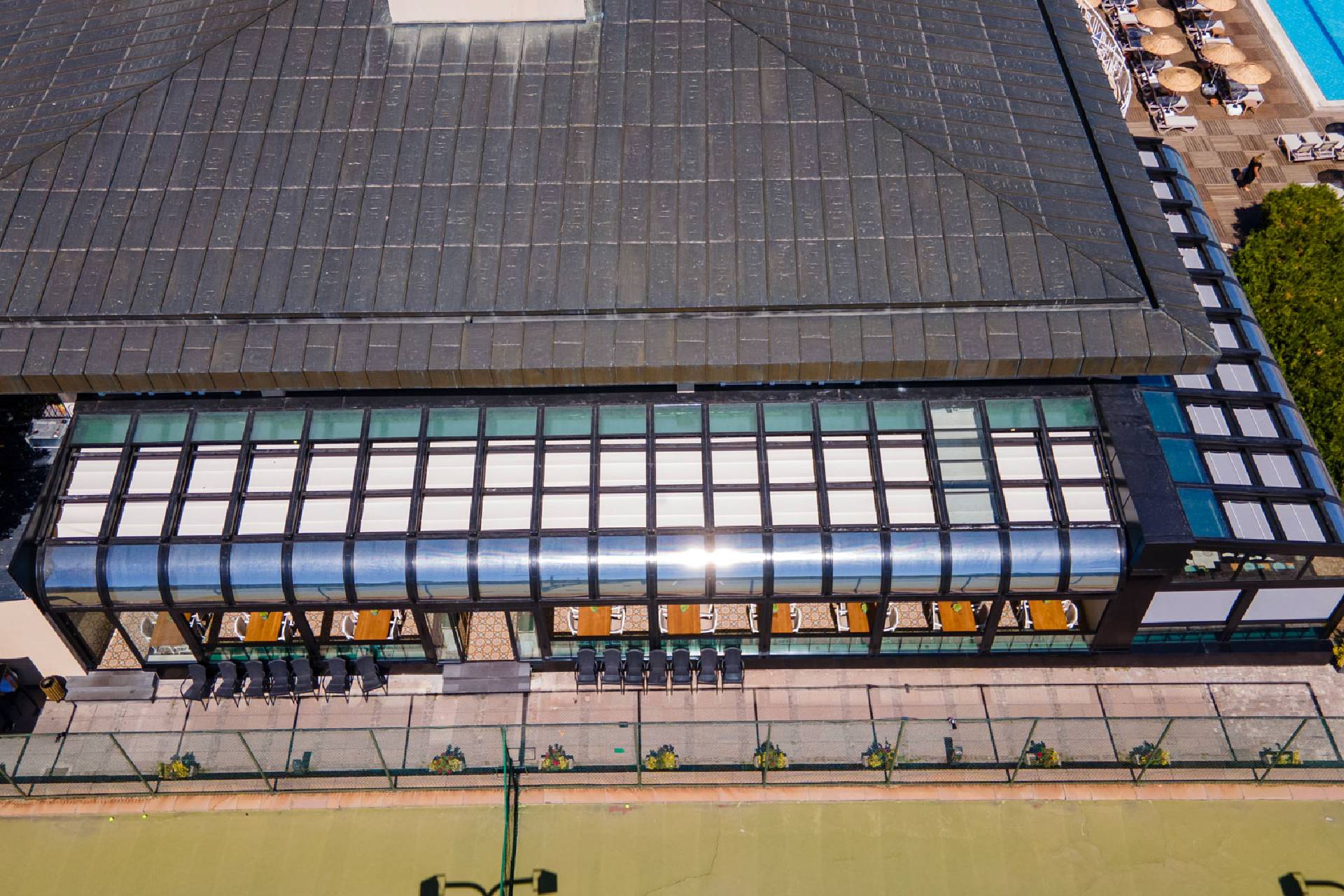

Sky Phaselis - Moving Glass Ceiling
You can use it in hotels, houses, shops, restaurants, pastry houses, winter gardens, terraces etc. It is more useful than other systems. In a way that you can turn the indoor space into an open space with a single click is designed. The system is opened and closed by retracting. It is used with 4 wings of insulated glass. Optionally, the number of wings can beincreased to 5, with 1 fixed and 4 movements. One wing is fixed and the other three are moving. You can stop the moving wings at the level you want.
Whether half you can open it full. It is never water and air proof when closed. To perfection with insulated glass gives close results. It adapts to any environment with its modern and elegant appearance. Even indoor and outdoor, it can watch the sky and save energy by letting light in. Above the system, our engine section is located in a specially designed box made of aluminum profiles. When required, the system can be easily removed and serviced by simply removing the motor box cover without
disassembling.
Side rails do not require steel construction up to 650 cm opening thanks to their 180 x 117 dimensions and 3 mm wall thickness. Maximum facade and opening can be
applied up to a single module 2500 * 4000 mm or a single module of facade opening is applied up to 1500 x 8000 mm. In this way, the sky image quality is high.
Technical Specifications
- 4+16+4 and 4+11+4+4 laminated tempered double glazing is applied.
- Thanks to the insulating glass we apply on the windows, thermal insulation is provided.
- It can be optionally made with 2,3,4, and 5 partitions in the direction of opening.
- Side rails do not require steel construction up to 650 cm opening thanks to 182*117 dimensions and 3 mm wall thickness.
- Maximum facade and opening single module can be applied up to 200 * 400 cm or facade opening single module can be applied up to 135 * 800 cm. Thus, the sky image quality is at the highest level.
- 8 stainless steel bearings are used on each wing, which allows the windows to move in a balanced way on the side rails.
- Maximum waterproofing is provided thanks to the extra gutter system connected to the side rails.
- The front foot dimensions in the system are 128*170 x 3 mm. The dimensions of the front gutter are 170 * 128 x 3 mm.
- Thanks to the add-on side rails in the system, in case of modification and glass breakage, modification can be done easily without dismantling the product.
- Systems can be controlled via remote control, button and mobile phone. Optional rain, sun and wind sensors can be added.
- T-10 timing belt is used for the windows to move in a balanced way. At the same time, it does not require a lock when in a closed position.
- Hidden LEDs are used for optional lighting in the system. The light level can be adjusted thanks to the dimmer.
- Optionally, the retractable roof system developed by WINPERAX can be used under the system.
